專利號: ZL201530291711.4
槍與配件適用于松下

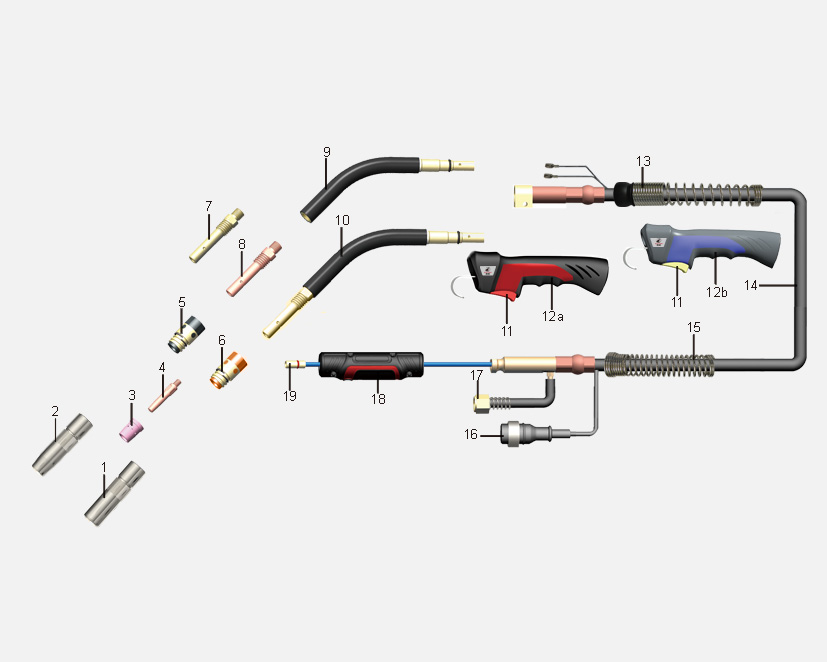

| No. | Order | 描述 | OEM p/n |
| MPA0200.03 | BW 350A 整槍 (BWM-V 紅黑手把) 3 米 | ||
| MPA0201.05 | BW 350A 整槍 (BWM-V 紅黑手把) 5 米 | ||
| MPA0202.03 | BW 350A 整槍 (BWM-V 藍灰手把) 3 米 | ||
| MPA0203.05 | BW 350A 整槍 (BWM-V 藍灰手把) 5 米 | ||
| 1 | MPA0230.01 | 柱形噴管 ?15mm | TGN01610 |
| 2 | MPA0230.02 | 錐形噴管 ?12mm | TGN00044 |
| 3 | MPA0239 | 分配器 | TGR01001 |
| 4 | MPA0132.02 | M6x45x0.9 導電嘴, 紫銅 | |
| MPA0132.03 | M6x45x1.0 導電嘴, 紫銅 | ||
| MPA0132.04 | M6x45x1.2 導電嘴, 紫銅 | ||
| MPA0133.02 | M6x45x0.9 導電嘴, 鉻鋯銅 | TET00930 | |
| MPA0133.03 | M6x45x1.0 導電嘴, 鉻鋯銅 | TET01054 | |
| MPA0133.04 | M6x45x1.2 導電嘴, 鉻鋯銅 | TET01266 | |
| 5 | MPA0240.01 | 絕緣筒, 黑色 | TFZ00002 |
| 6 | MPA0240.02 | 絕緣筒, 黃色 | |
| 7 | MPA0236 | 導電嘴座, 黃銅 | |
| 8 | MPA0235 | 導電嘴座, 紫銅 | |
| 9 | MPA0243.01 | 分體彎管 | TSM06357 |
| 10 | MPA0243.02 | 一體彎管 | TCU35022 |
| 11 | MPA0195.06 | 開關 | |
| 12a | MPA0227.01 | BWM-V 手把 ( 紅黑) | |
| 12b | MPA0227.02 | BWM-V 手把 ( 藍灰) | |
| 13 | MPA0296 | 前電纜支撐彈簧 | |
| 14 | MPA0260.01 | 工業型電纜組37mm2, 3米 | |
| MPA0260.02 | 工業型電纜組37mm2, 5米 | ||
| MPA0260.03 | 實用型電纜組33mm2, 3米 | ||
| MPA0260.04 | 實用型電纜組33mm2, 5米 | ||
| MPA0260.05 | 經濟型電纜組28mm2, 3米 | ||
| MPA0260.06 | 經濟型電纜組28mm2, 5米 | ||
| 15 | MPA0297 | 后電纜支撐彈簧 | |
| 16 | MPA0174 | 控制插頭 | TWU18101 |
| 17 | MPA0181 | 螺母 | |
| 18 | MPA0171 | 接頭把套 | |
| 19 | MPA0281.02F | 藍色送絲軟管, 適用焊絲 ?1.0-1.2, 3.5 米 | |
| MPA0281.02G | 藍色送絲軟管, 適用焊絲 ?1.0-1.2, 5.5 米 |
BLACK WOLF is in no way affiliated with PANASONIC. The parts advertised for sale are not genuine PANASONIC parts, but are parts made for and by BLACK WOLF.
References to PANASONIC machines, torches,and numbers are for your convenience only. We reserve the right to substitute genuine PANASONIC parts in place of BLACK WOLF parts.
